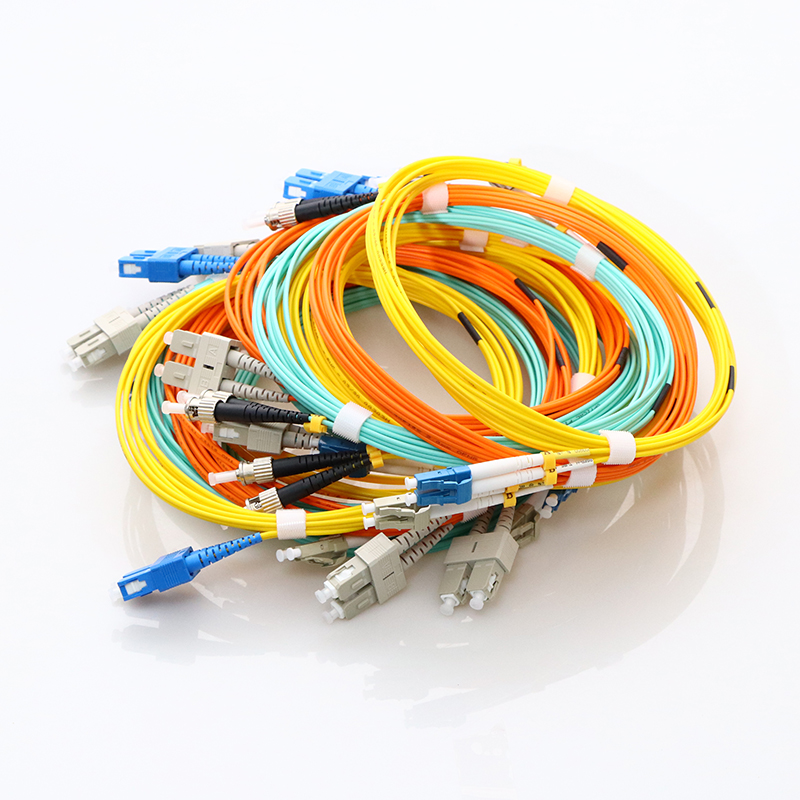

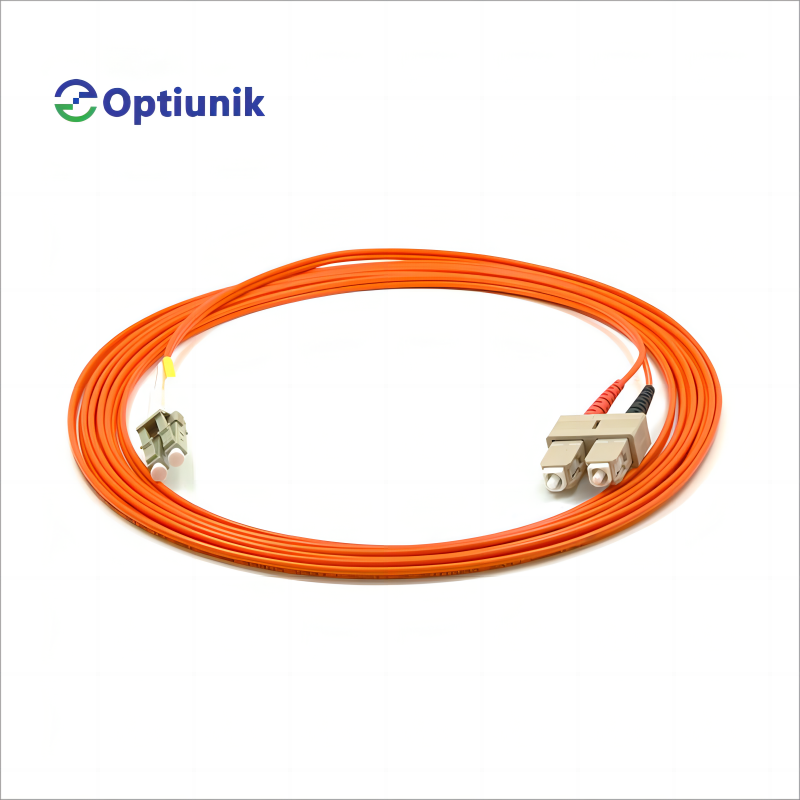

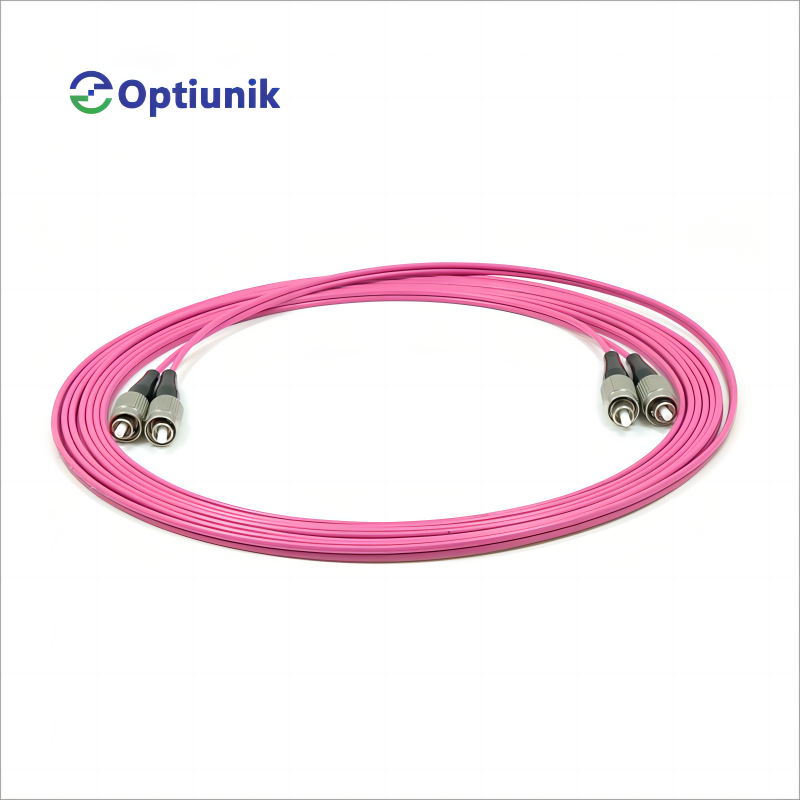

Standard duplex / simplex fiber patch cord for structured cabling, datacenter, telecom, broadcast, and industrial deployments. Every connector is hand-polished, inspected on a 3D-interferometer for apex offset, radius of curvature, and fiber height, and tested for insertion loss and return loss before pairing into a finished cable assembly.

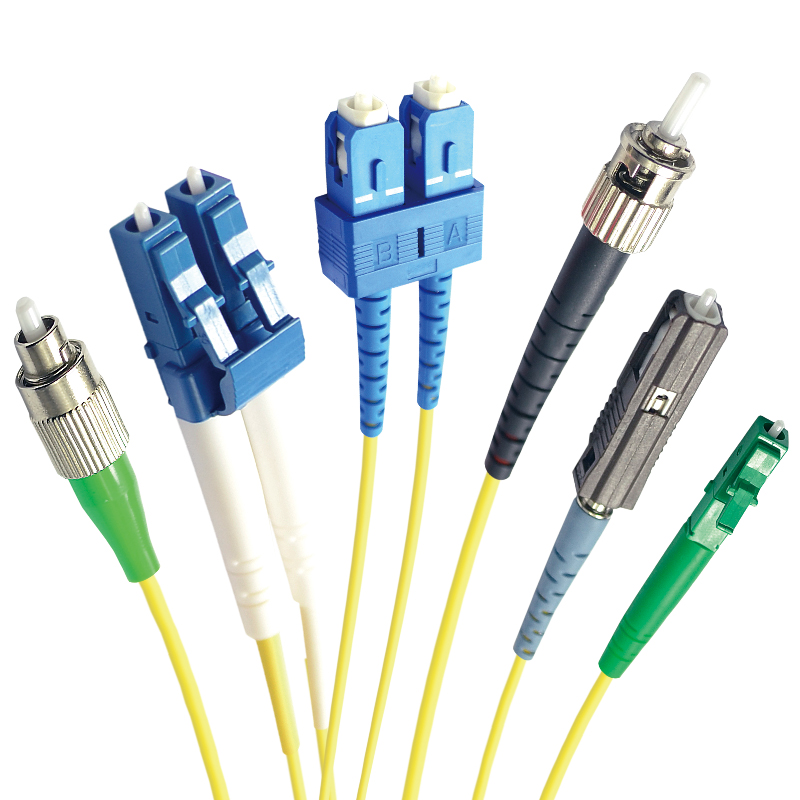

Connectors: LC, SC, FC, ST, MU, E2000 (specify both ends — different ends allowed). Polish: UPC (flat, return loss > 50 dB) or APC (8° angle, return loss > 65 dB; required for high-power Tx and analog video). Fiber type: OS1 9/125 µm single-mode (legacy), OS2 G.657.A2 bend-insensitive single-mode (current standard), OM1 62.5/125 µm multimode (legacy), OM2 50/125 multimode (legacy), OM3 laser-optimized 850 nm (10G), OM4 extended-reach 850 nm (40G / 100G), OM5 wideband multimode (next-gen SWDM).
Jacket: PVC (most common, indoor only), LSZH (low-smoke zero-halogen, plenum installs), OFNP plenum-rated, OFNR riser-rated, armored stainless steel (rodent and crush resistant). Length: 0.5 m to 100 m standard in 0.5 m increments (custom up to 500 m). Colors per TIA-598 standard for the fiber-grade jacket. Each cable ships with a label printed with date, batch, IL / RL data, and lot traceability.
