Fiber Patch Cords
Fiber patch cords are the last meter of every optical link. Optiunik supplies the full range of duplex, simplex, breakout, and MTP/MPO trunk patch cords, with every connector hand-polished and inspected on a digital interferometer before assembly. Connector options include LC, SC, FC, ST, MU, and E2000 in UPC and APC polish; fiber grades cover OS1 / OS2 single-mode and OM1 / OM2 / OM3 / OM4 / OM5 multi-mode (color-coded jacket per TIA standard). MTP®/MPO trunk and breakout cables are available in 8 / 12 / 16 / 24-fiber variants with Type A / B / C polarity and pinned or unpinned ends. Custom lengths are produced in 1 m steps without minimum charges (most orders ship within 3 days). Jacket options include PVC, LSZH, OFNP / OFNR, and armored for outdoor / harsh-environment deployments. All cables ship with individual IL / RL test reports.
4 products

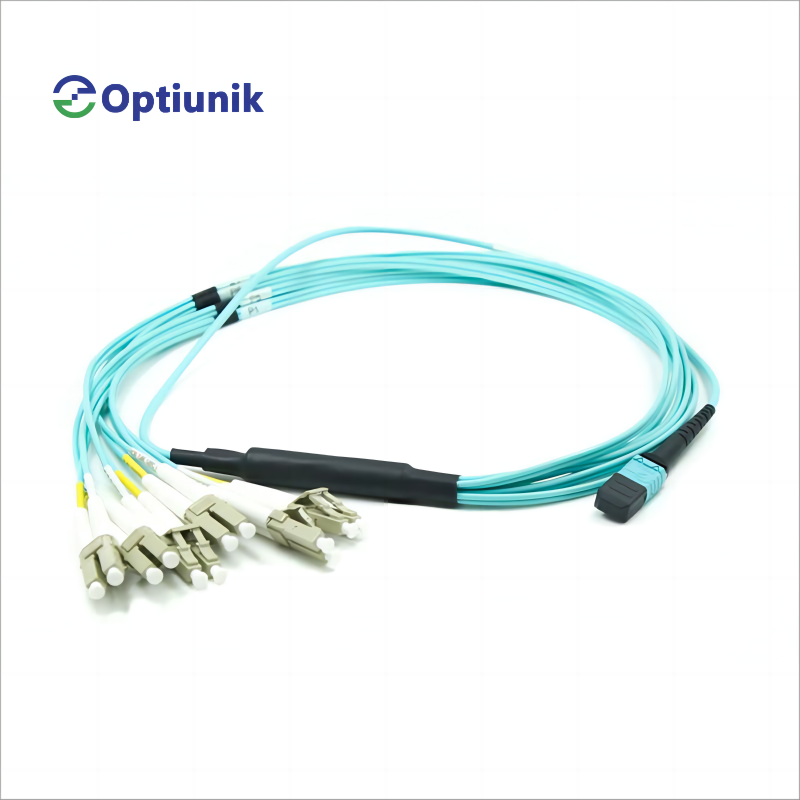

Breakout MPO/MTP Patch Cord
8/12-fiber MTP/MPO-to-LC duplex fan-out cables for converting parallel-optic transceiver ports into duplex switch interfaces.

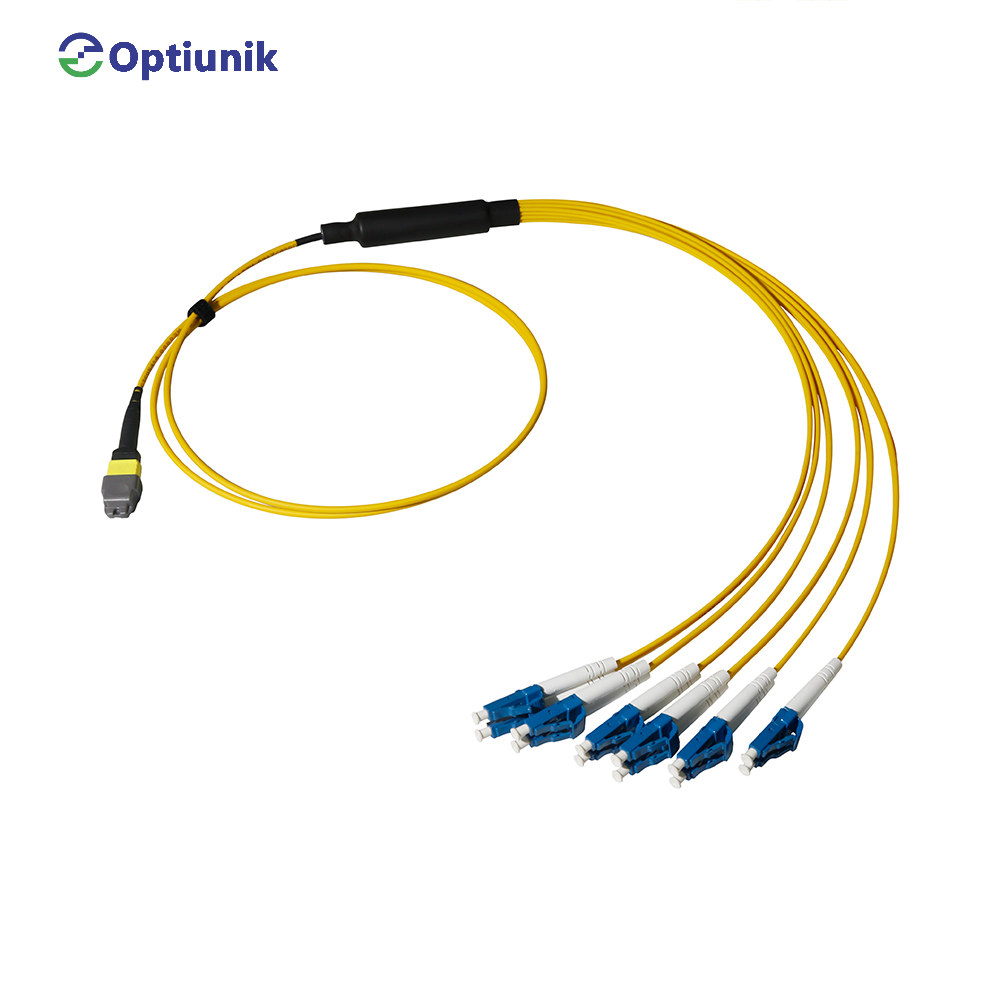

MTP/APC-LC/UPC Pre-terminal Multi-core Fiber Optic Patch Cord OS1/OS2 Singlemode Duplex 9/125 µm
Factory-terminated MTP/APC-to-LC/UPC singlemode 9/125 µm breakout with low IL and high return loss for DWDM and long-haul parallel deployments.

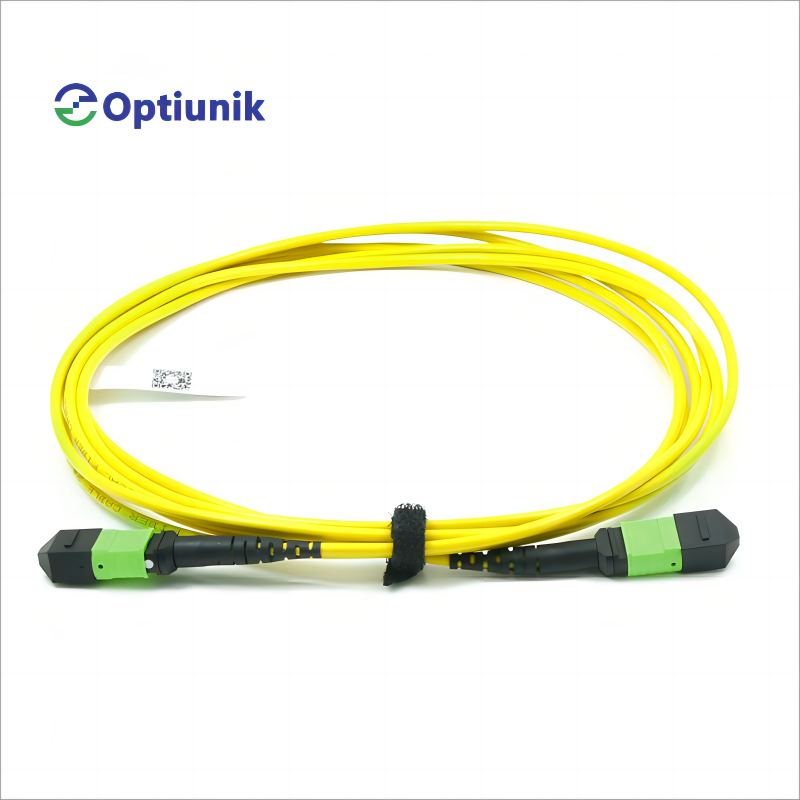

MTP/MPO Patch Cord
8/12/24-fiber MTP®/MPO trunk and harness cables for 40G/100G/400G parallel optics — OM3, OM4, OM5, OS2 grades, Type A/B/C polarity.

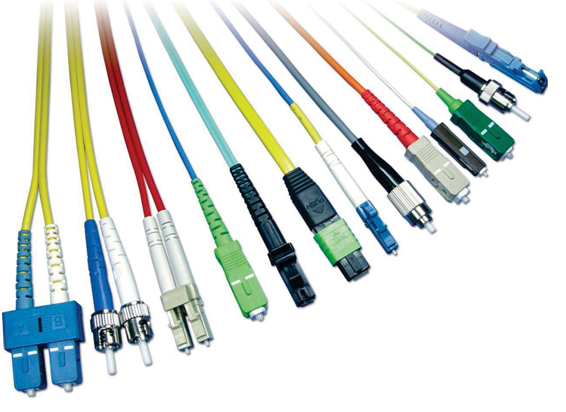

Standard Patch Cord
Single-mode (OS1/OS2) and multi-mode (OM1–OM5) duplex/simplex patch cords with LC, SC, FC, ST, MU, E2000 connectors — UPC and APC polish.
